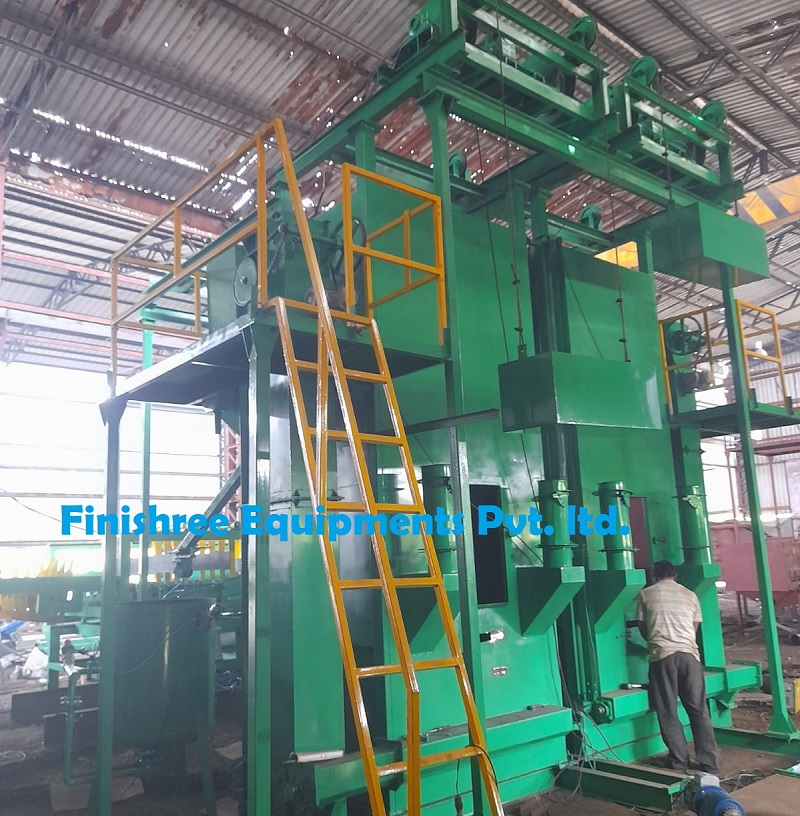

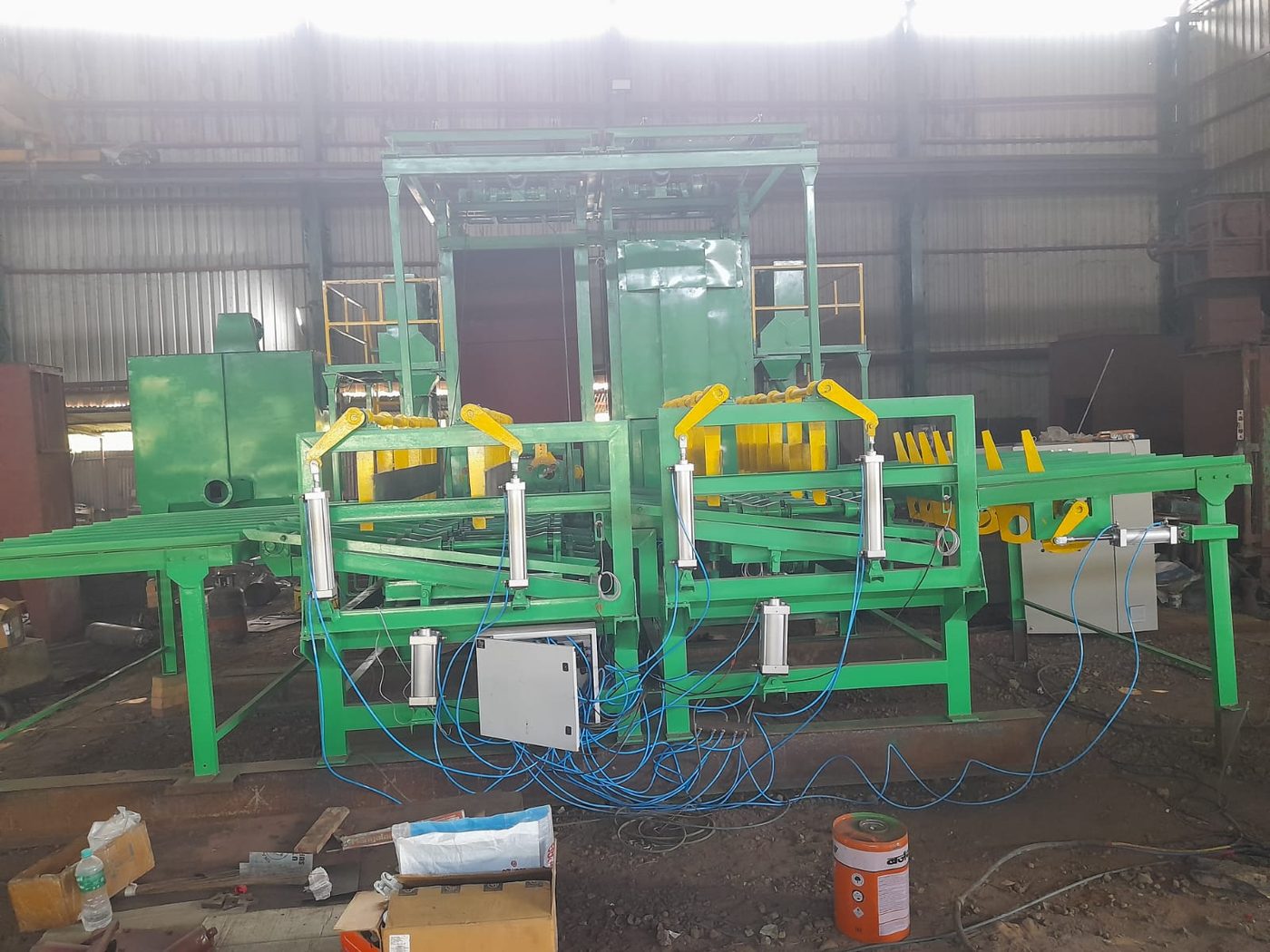

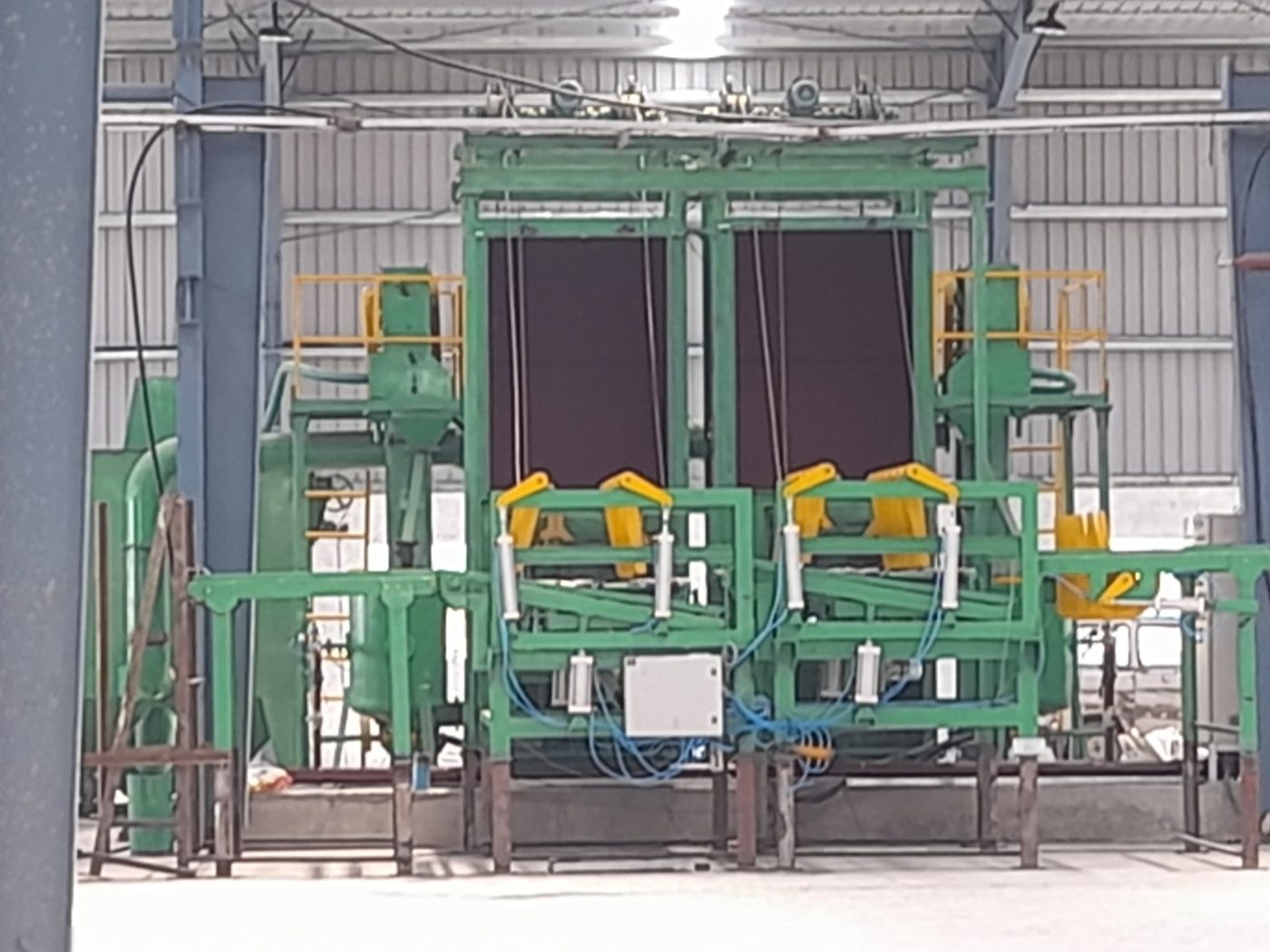

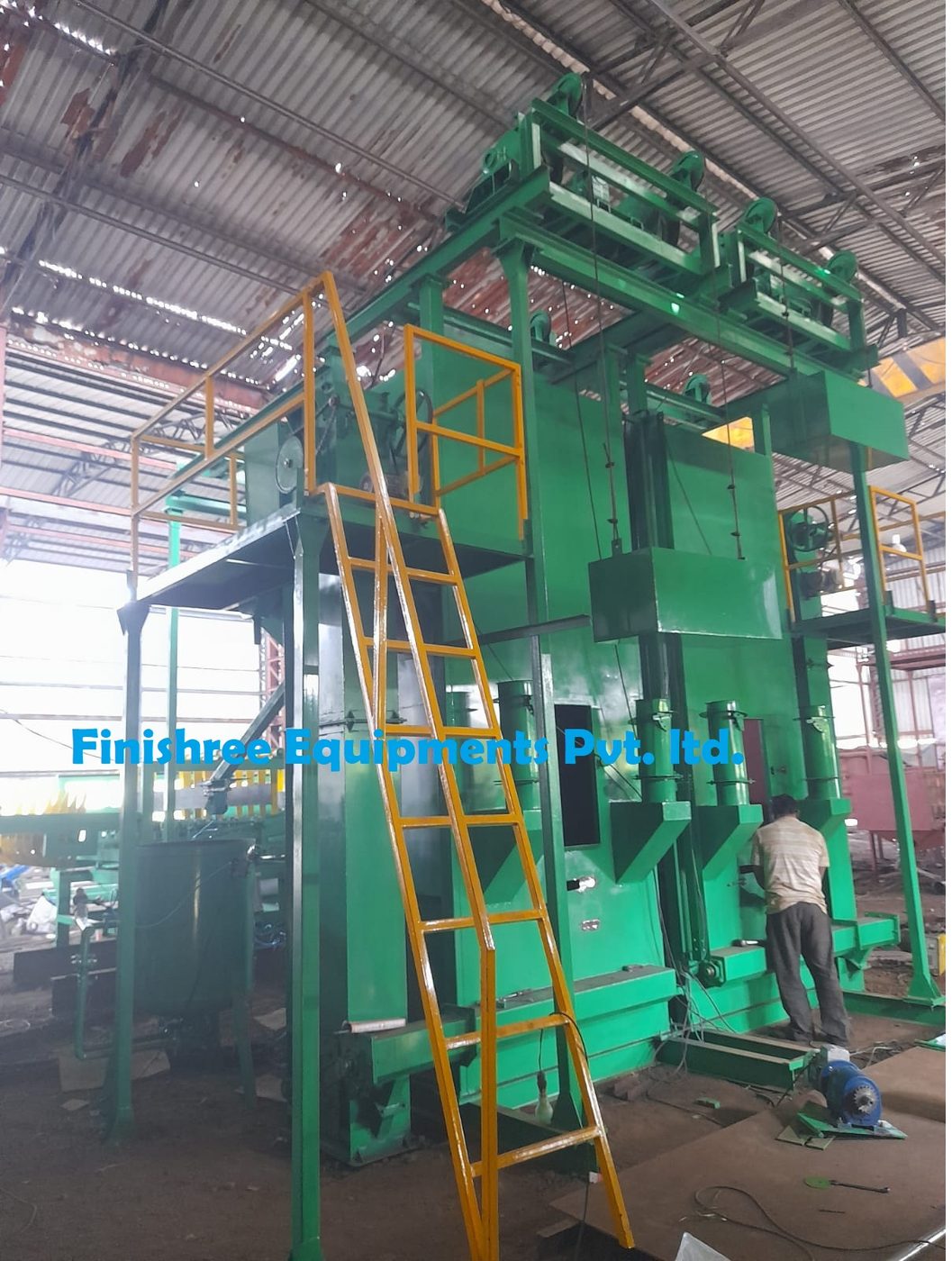

Internal Cylinder Shot Blasting Machine

In industries dealing with cylindrical components like gas cylinders, pipelines, and pressure vessels, maintaining the integrity of internal surfaces is crucial for safety, performance, and durability. An internal cylinder shot blasting machine is a specialized solution designed to clean and treat the inner surfaces of these cylindrical objects.
This technology has become an essential tool in the manufacturing and maintenance of components that require high cleanliness and smooth surfaces, especially in the automotive, aerospace, gas, and oil industries. This guide will explore the working principles, advantages, applications, and key features of internal cylinder shot blasting machines, demonstrating why they are an integral part of modern industrial processes.

What is an Internal Cylinder Shot Blasting Machine?

An internal cylinder shot blasting machine is a high-performance cleaning tool used to prepare the internal surfaces of cylindrical objects, such as gas cylinders, pipes, tubes, and pressure vessels. The machine operates by propelling abrasive material, such as steel shot or grit, at high speeds into the interior of the cylinder. This abrasive action removes rust, scale, old coatings, and other contaminants, leaving a clean and treated surface ready for further processes like painting, coating, or inspection.

How Does an Internal Cylinder Shot Blasting Machine Work?

The shot blasting machine is engineered to clean hard-to-reach internal surfaces through the following steps:
1. Cylinder Placement: The cylinder is loaded into the machine, either manually or via an automated loading system.
2. Abrasive Nozzle Insertion: Specially designed nozzles, which direct the abrasive material, are inserted into the open ends of the cylinder. These nozzles are positioned to ensure optimal coverage of the interior surface.
3. Rotational Mechanism: The cylinder is rotated during the blasting process, ensuring even distribution of the abrasive media over the entire internal surface.
4. Abrasive Media Blasting: High-velocity abrasive material (such as steel grit) is blasted through the nozzles, striking the cylinder’s internal walls and effectively removing contaminants like rust, old paint, or scale.
5. Abrasive Recovery and Dust Collection: After blasting, the spent abrasive and dust are collected by an integrated recovery system. The reusable abrasive is separated from the waste material, cleaned, and recycled for future use.
6. Quality Check: Once the process is complete, the internal surface of the cylinder is inspected for cleanliness and surface profile, ensuring that it meets the necessary standards.

Key Features of Internal Cylinder Shot Blasting Machines

1. Precision Nozzle System: These machines feature precision nozzles designed to reach deep into the cylinder’s interior, providing full coverage and consistent cleaning.
2. Rotational Cleaning Mechanism: As the cylinder rotates during the blasting process, the entire internal surface is treated uniformly, ensuring no areas are missed.
3. Abrasive Recovery System: The machine’s recovery system collects and cleans the abrasive media, reducing costs and ensuring an environmentally friendly operation.
4. Automated Controls: Advanced control panels allow operators to set parameters such as pressure, rotation speed, and blasting duration, offering flexibility for different types of cylinders and materials.
5. Dust Filtration: The dust collection system ensures that dust and debris generated during the process are captured, keeping the work environment clean and minimizing health risks to operators.
6. Adaptability: Machines are designed to handle a wide range of cylinder sizes and materials, making them versatile for various industries.
5. Dust Filtration: The dust collection system ensures that dust and debris generated during the process are captured, keeping the work environment clean and minimizing health risks to operators.
6. Adaptability: Machines are designed to handle a wide range of cylinder sizes and materials, making them versatile for various industries.

Benefits of Using an Internal Cylinder Shot Blasting Machine

1. Improved Surface Quality: The machine’s precise blasting process ensures that internal surfaces are thoroughly cleaned, leading to a smoother surface that is ready for coating or inspection.
2. Enhanced Safety: Cleaning internal surfaces of gas or pressure cylinders reduces the risk of corrosion, which can lead to dangerous failures in high-pressure environments.
3. Cost-Effective Operation: By recycling abrasive media and operating in an automated fashion, these machines reduce material costs and labor hours, offering long-term savings.
4. Environmentally Friendly: The use of abrasive recovery systems and dust filtration makes this process eco-friendly by minimizing waste and controlling air quality.
5. Consistency and Speed: Automated operation ensures consistent results and faster processing, critical for industries that demand high throughput without compromising quality.

Applications of Internal Cylinder Shot Blasting Machines

Internal cylinder shot blasting machines are widely used in several key industries, including:
• CNG and LPG Cylinder Manufacturing: Ensures the internal surfaces of gas cylinders are clean before they are coated, inspected, or put into use.
• Pipeline and Tubing Industry: Used to clean the internal surfaces of pipes and tubes before further processing like coating or welding.
• Pressure Vessel Maintenance: Essential for the refurbishment of pressure vessels, ensuring internal surfaces are free of rust or contaminants.
• Aerospace and Automotive Sectors: Critical for cleaning internal surfaces of fuel tanks, hydraulic cylinders, and other cylindrical components.

Internal Cylinder Shot Blasting Machines also called as:

• Internal cylinder shot blasting machine
• Internal pipe cleaning machine
• Gas cylinder shot blasting
• Abrasive blasting for cylinders
• Pressure vessel shot blasting
• Surface treatment for internal cylinder walls
• CNG cylinder surface cleaning
• Shot blasting machine for internal surfaces
