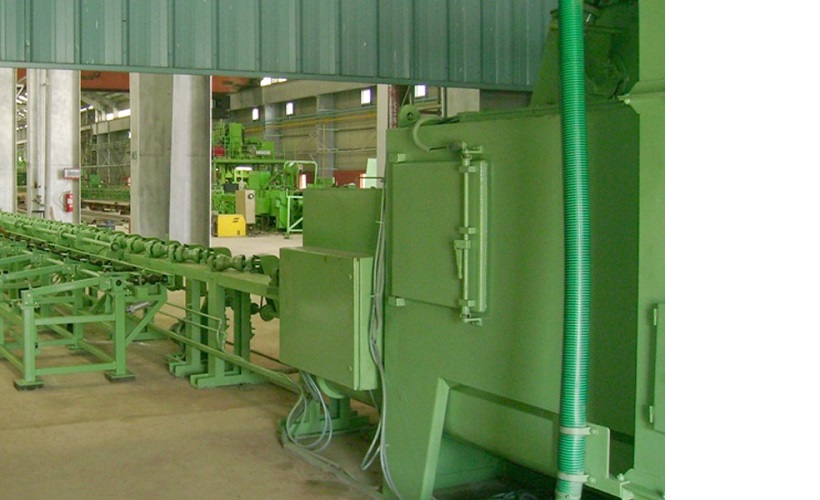

Rod Pipe Tube Bright Bar Cleaning Shot Blasting Machine
The Pipe Cleaning Shot Blasting Machine or pipe descaling equipment is designed specifically for cleaning pipes. Here's a breakdown of its operation:
1. Pipe Placement:
Pipes are positioned on the inward side of the Screw conveyor unit, which transports them into the work chamber of the pipe shot blasting equipment.
2. Work Chamber Configuration:
Within the work chamber, there are 2 bottom-mounted blast wheel positions strategically placed to direct abrasive media from the bottom side of the rotating pipe.
3. Shot Blasting Process:
As the pipes move through the work chamber, the blast wheels release abrasive media onto the pipes' surfaces. The rotation of the pipes ensures thorough shot blasting coverage.
4. Cleaning Action:
The pipes undergo shot blast cleaning as they pass through the blast stream area, effectively removing impurities, scale, and contaminants from their surfaces.
5. Exit and Manual Removal:
Once the shot blasting process is completed, the cleaned pipes exit from the terminal portion of the equipment, where they are manually removed.
A pipe shot blasting machine is a specialized industrial equipment used for surface treatment and cleaning of steel pipes. Here's an overview of its
key components and functions.
These specialized shot blasting machines allow comprehensive and uniform blasting of tubes, round bars, bright bars in a continuous process.
Operation:
In this shot blasting machine, the pipe is kept on inside of skew conveyor system. This pipes are transferred into work chamber in rotating condition. In work chamber 2 no. of blast wheel station which fire abrasive on rotating pipe. The pipes got duly blast cleaned while passing through blast chamber. After blasting pipe come out from outlet & removed manually or automatic. In machine we have provided inlet & outlet vestibules to trap escaping shots. To remove dust we provide different type of duct collectors as per customer demand.
Application:
• The round bar shot blasting machine use to remove dust & welding slag of raw material.
• Shot blasting process increases surface roughness of material to some extent, so as to remove stress, improve steel structure & anti-corrosion performance.
• The surface roughness of materials are being improved to some extent, so as to remove stress, improve steel structure and steel surface painting and anti-corrosion performance.
‘Finishree’ Airless Shot Blasting Machine Conveyor type for cleaning of Metallic Pipes with Blast Cabinet, Bucket Elevator, Abrasive Cleaning System, Abrasive Separator, dust collector, Control Panel & electric Motors Blast Wheel Assembly Qty. 2 Nos. & Skew Roller Conveyor System.
Components:
Conveyor System: This moves the steel pipes through the blasting chamber at a controlled velocity. The speed ensures uniform blasting across the pipe's surface.
Blasting Unit: Typically comprises turbines or wheels that propel abrasive media (like steel shots, copper slag, etc.) onto the pipe's surface at high velocity to remove rust, scale, or contaminants.
Rubber Screens: Placed strategically to trap and recirculate the abrasive media that might escape during the blasting process.
Inlet and Outlet: These are the entry and exit points for the pipes into and out of the blasting machine
ITEM ST500 RT800 RT15000
Functionality:
Surface Preparation: The machine's primary function is to clean the surface of steel pipes, preparing them for various applications like painting, coating, or welding.
Abrasive Blasting: It uses high-velocity abrasive particles propelled against the pipe's surface to remove rust, mill scale, old paint, and other contaminants, ensuring a clean surface.
Uniform Treatment: The controlled conveyor velocity and the arrangement of the blasting unit ensure even treatment across the entire length and circumference of the pipe.
Media Recovery: The rubber screens prevent the loss of abrasive media, allowing for its collection and reuse, reducing waste and cost.
Importance:
Efficiency: Ensures efficient and consistent cleaning of pipes, reducing manual labor and time.
Quality Control: Provides a uniform and high-quality surface finish on pipes, meeting industry standards.
Cost-Effectiveness: Reduces material waste by recycling abrasive media and minimizes rework due to consistent surface preparation.
Maintenance:
Regular maintenance of a pipe shot blasting machine includes cleaning and inspecting the conveyor system, checking abrasive media levels, ensuring proper functioning of turbines/wheels, and replacing worn-out parts for optimal performance.
These machines play a vital role in industries like manufacturing, construction, and pipeline production, ensuring that steel pipes meet required standards and specifications for various applications.

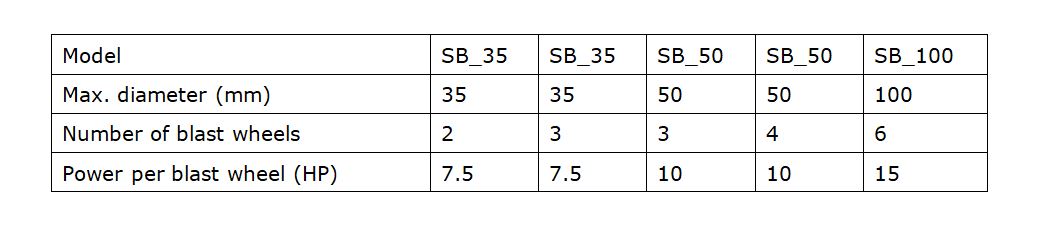

Technical Specification Sheet
Finishree Equipment’s Pvt. Ltd.
Finishree shot blasting is a leading Manufacturer, Supplier & Exporter of Bar blasting Shot Blasting Machine, Sand Blasting Machine, shot Blasting Machine, grit blasting machine, Sand Blasting Cabinet, Shot Blasting Room. We are also manufacturer and supplier of spinner hanger shot blasting machine in India and We provide service in all cities as (Pune, Mumbai, Chennai, Banglore, Kolkata, Gurgaon, Noida, Ghaziabad, Agra, Kolhapur, Madurai, Coimbatore, Hydrabad, Aurangabad, Ahmednagar, Satara, Indor, Bhopal, Nagpur, Ahmedabad, Vadodara, Surat, Nasik, Gandhidham ) at low cost, best price with the best quality.
Types of Pipe Shot Blasting Machine
1. Airless Pipe Shot Blasting Machine:
Description: This machine is specifically designed for shot blasting pipes and tubular-shaped parts.
Features: The Diabola Shot Blasting Machine likely operates without using compressed air, hence the term "airless." It's suitable for achieving surface preparation without relying on air pressure for propelling abrasives.
Customization: It can be manufactured to suit specific client specifications, ensuring it meets their exact requirements.
Availability: Offered in the market at reasonable rates, making it accessible for various industries requiring such surface treatment equipment.
2. Air Operated Shot Blasting Machine:
Variants: This category encompasses various types: Water Curtain Type, Semi Down Draft Type, End Draft Type, and Down Draft Type.
Functionality: These machines operate using compressed air and come in different configurations to suit different operational needs.
Attributes: Known for qualities like longer service life, corrosion resistance, and high compressive strength.
Customization: Available in both standard and customized forms, catering to the specific needs of diverse industries and applications.
Each type of machine seems tailored to different needs and preferences within the surface treatment industry. The choice between airless and air-operated machines often depends on factors such as the nature of the workpiece, desired surface finish, efficiency, and the specific requirements of the application.
Types of pipe shot blasting machines based on the area they focus on cleaning: external and internal pipe shot blasting machines.
1. External Pipe Shot Blasting Machines:
Purpose: Specifically designed for cleaning the external surface of pipes.
Sizes Available: Available for various pipe diameters ranging from 2 inches to 130 inches.
Usage: Widely used for cleaning both new and used pipes utilized in oil, gas, or waterline applications.
Cleaning Process: Removes mill scale from new pipes and eliminates rust and corrosion from used pipes.
Benefits: Provides a uniformly cleaned surface, enhancing inspection capabilities and creating a better bonding area for subsequent coating applications.
2. Internal Pipe Shot Blasting Machines:
Purpose: Focuses on cleaning the interior surface of pipes.
Cleaning Principle: Operates on the air blast principle, utilizing a lance sand blasting nozzle.
Handling System: Can be equipped with an inlet and outlet conveyor and handling system for efficient operation.
Usage: Widely used for cleaning both new and used seamless steel tubes.
Advantages: The shot-blasted interior surface enhances bonding for final coating applications.
Both types serve critical functions in the pipeline industry, ensuring the cleanliness and integrity of pipes used in various applications. External machines prepare the outer surface by removing scale, rust, or corrosion, while internal machines ensure the cleanliness of the interior for optimal performance and coating adhesion.
These specialized machines cater to different parts of the pipeline maintenance or manufacturing process, contributing to the longevity and reliability of pipelines used in diverse industries such as oil, gas, water, and more.
