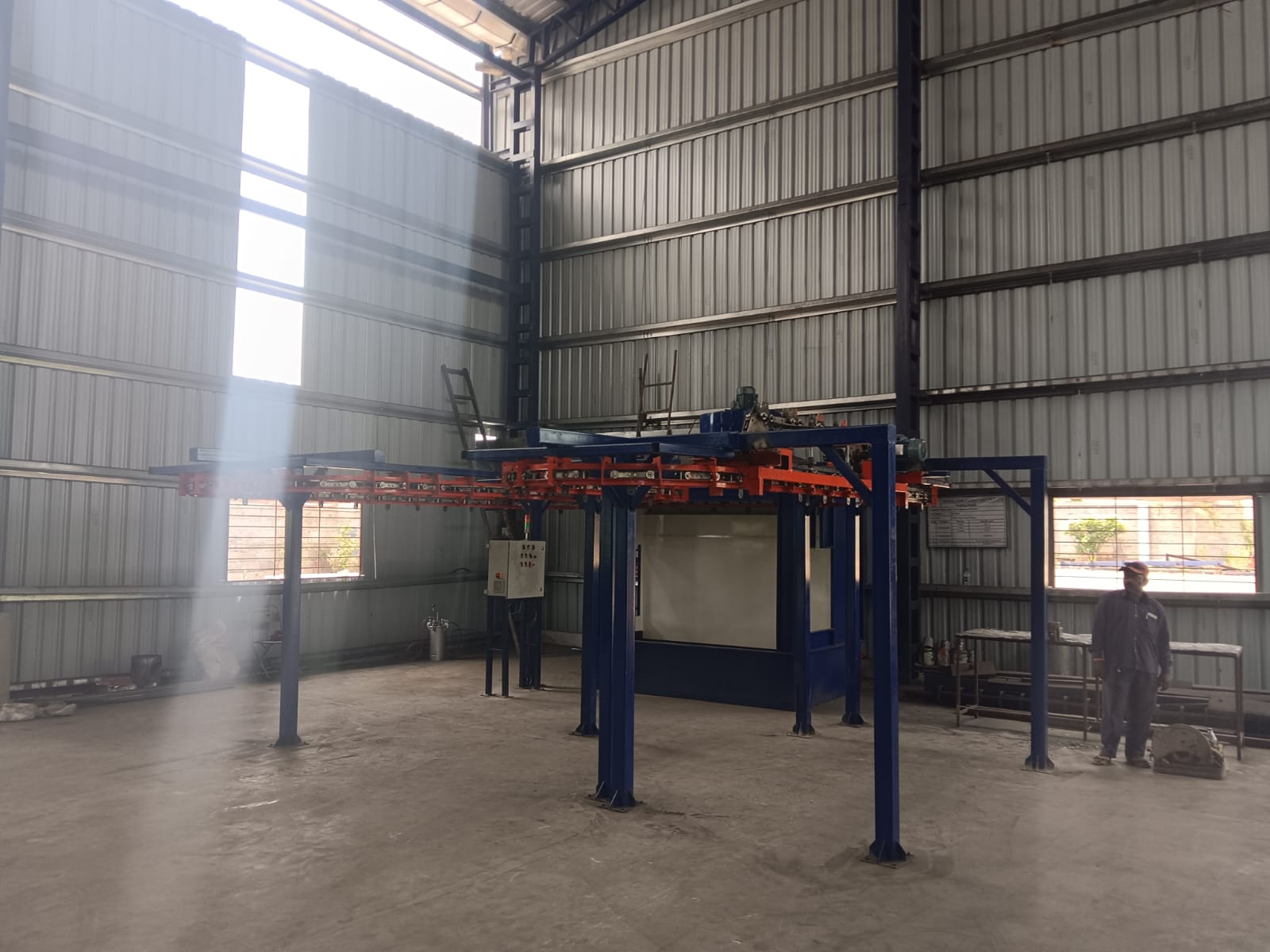

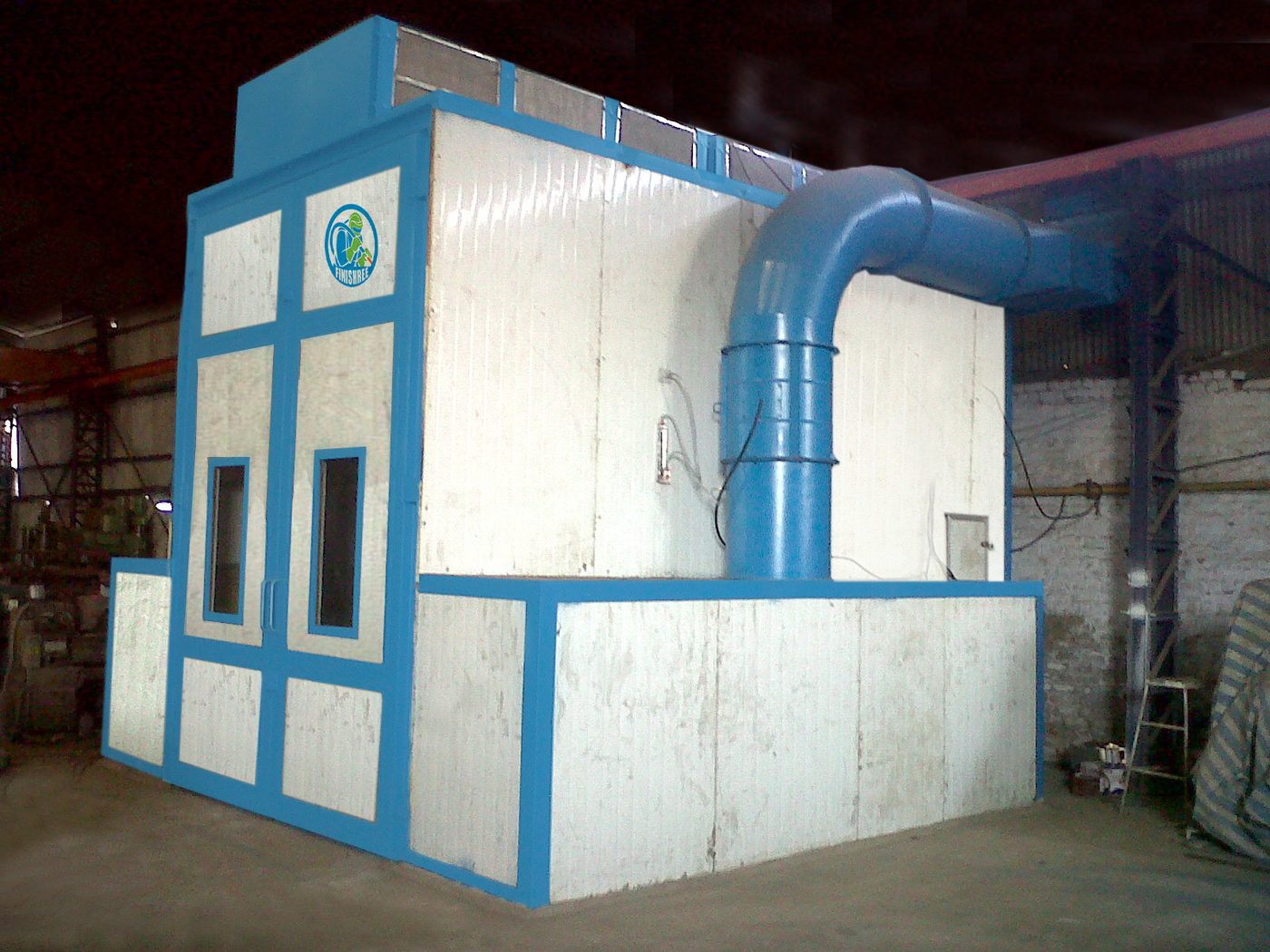

Paint Spray Booth System
Spray booth is an investment that pays rich dividends by providing superior quality finish, increase in
productivity & better working conditions.
What is the function of the paint booth?
- To Avoid Pollution.
- To collect the over spray and to exhaust clean air.
- To provide clean air to the operator.
- To treat the over spray in a way that sludge is formed and disposed off.
Types of dry paint spray booth :

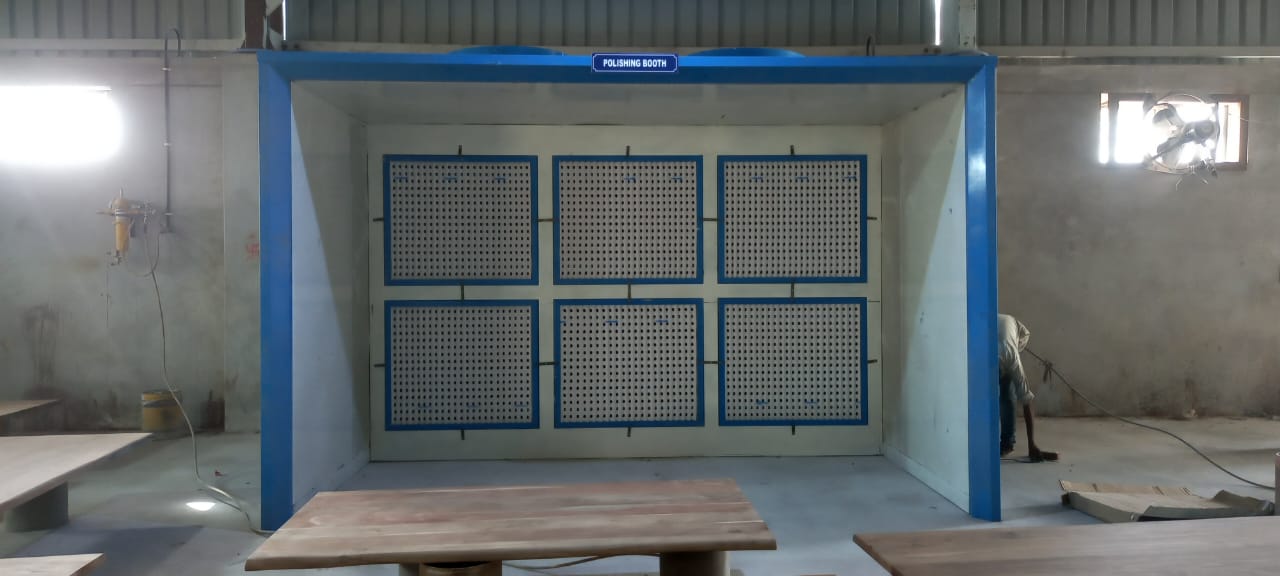

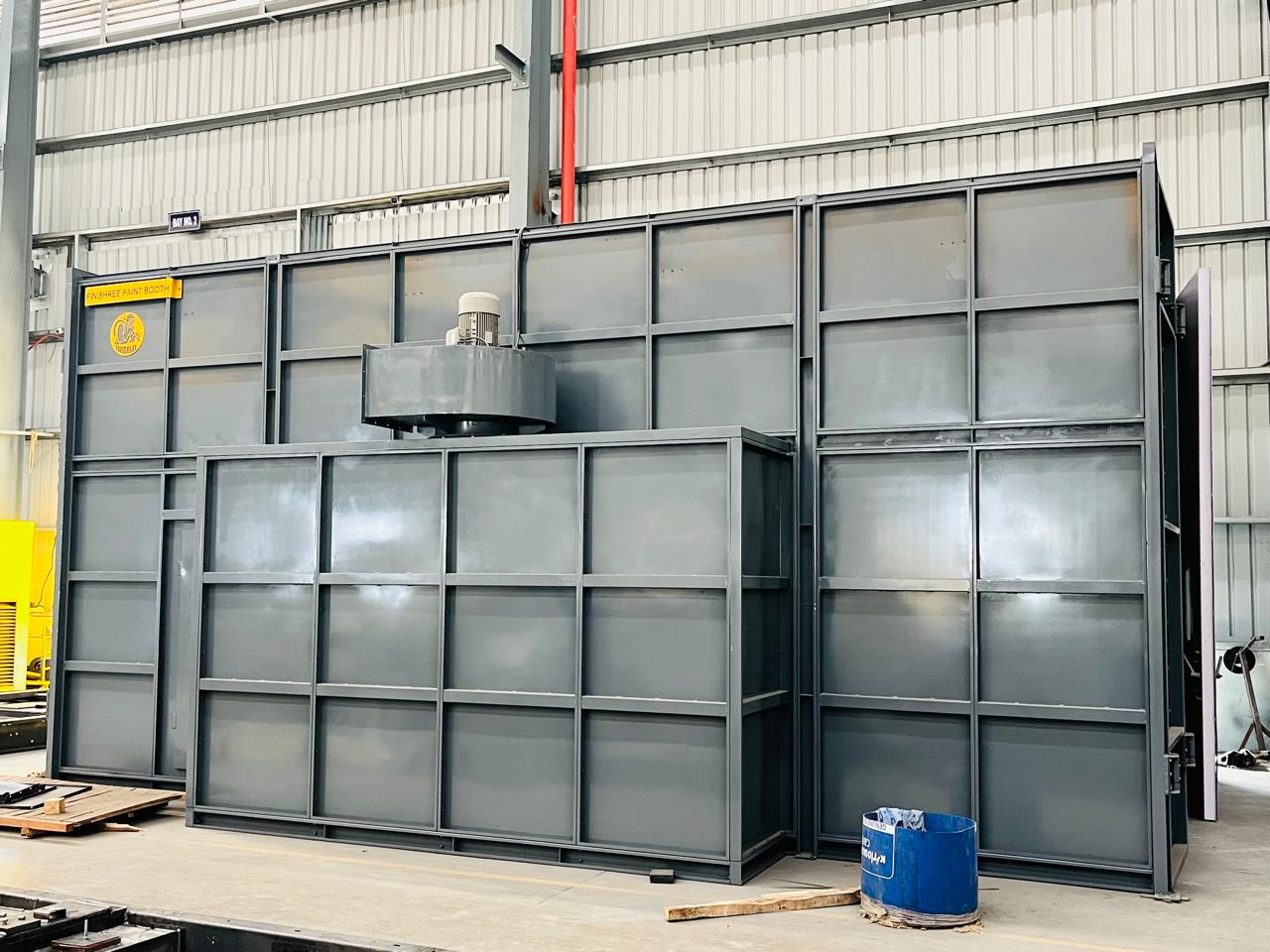

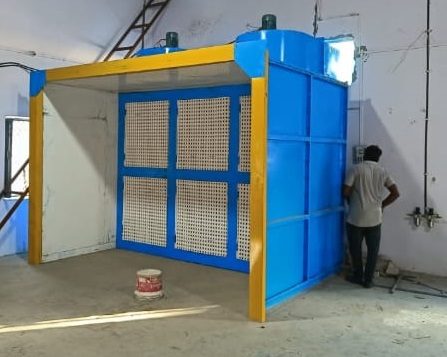

1. Side Draft Paint Spay Booth
When the flow of air is from side towards the water curtain or dry filter then it is a side draft booth
When will you use a cross draft booth?
- For painting Trucks, Vans, Cars etc.
- What is the advantage and disadvantage of using this booth?
The advantage of using this booth is that no civil pit is required.
The disadvantage is the paint fumes will get deposited on the side walls, on the view glass and on the ground.
Paint Spray Booth System

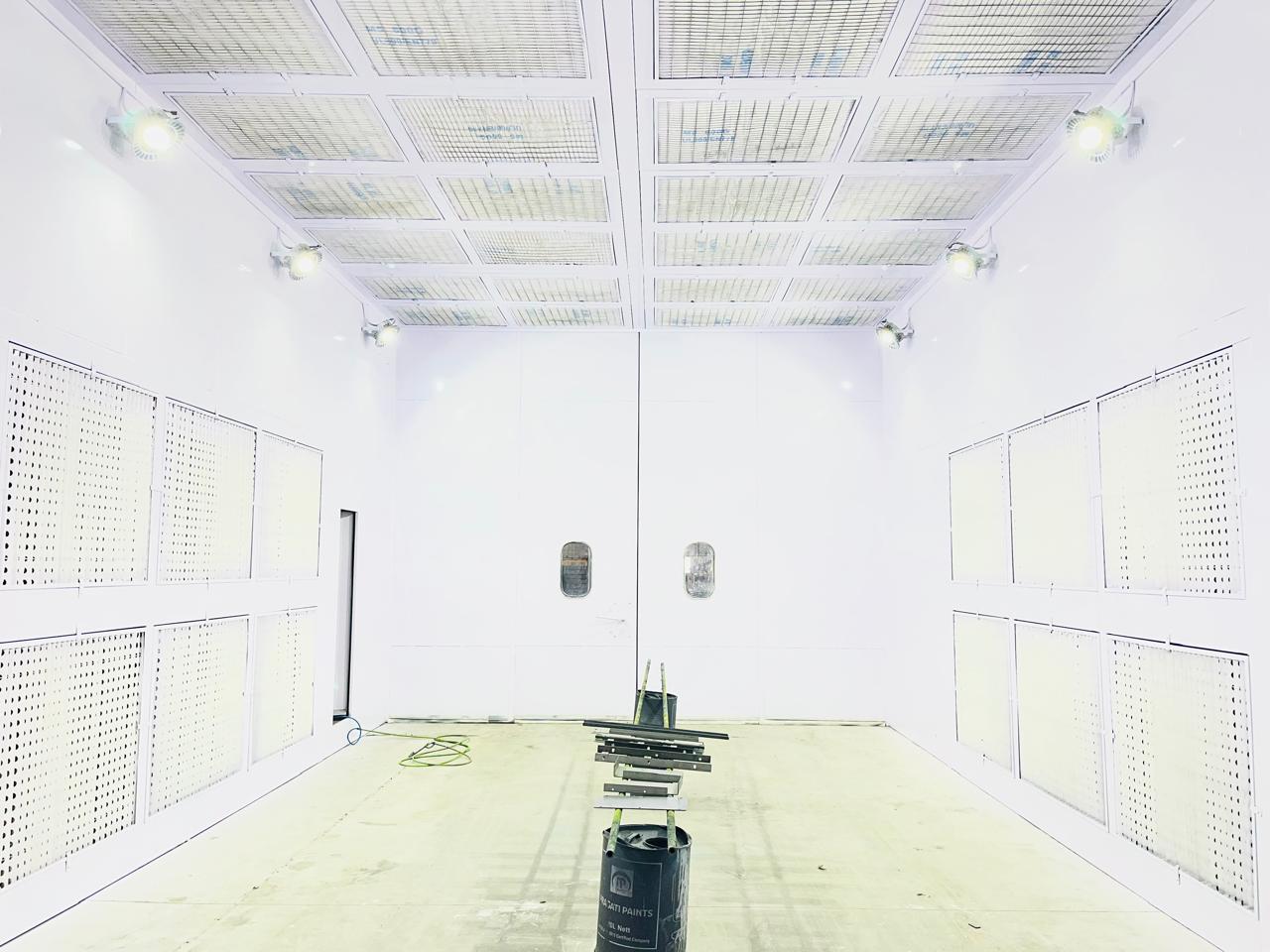

2. Semi Downdraft Paint Spray Booth
When the flow of air is from top to bottom then it is a down draft booth.
When will you use a down draft booth?
- When the component is to be painted all around a down draft booth is used.
- Here the operator can go around the component.
- For ex. Trucks, Bus Body, Cars, Earth Moving Equipments, Wind Mills etc.

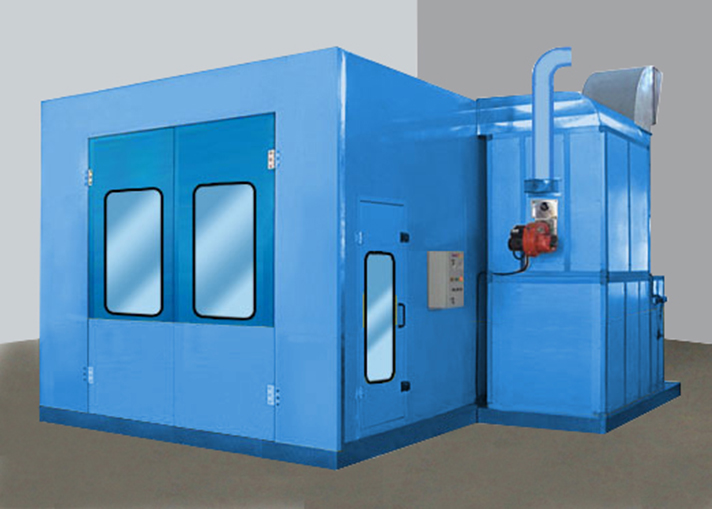

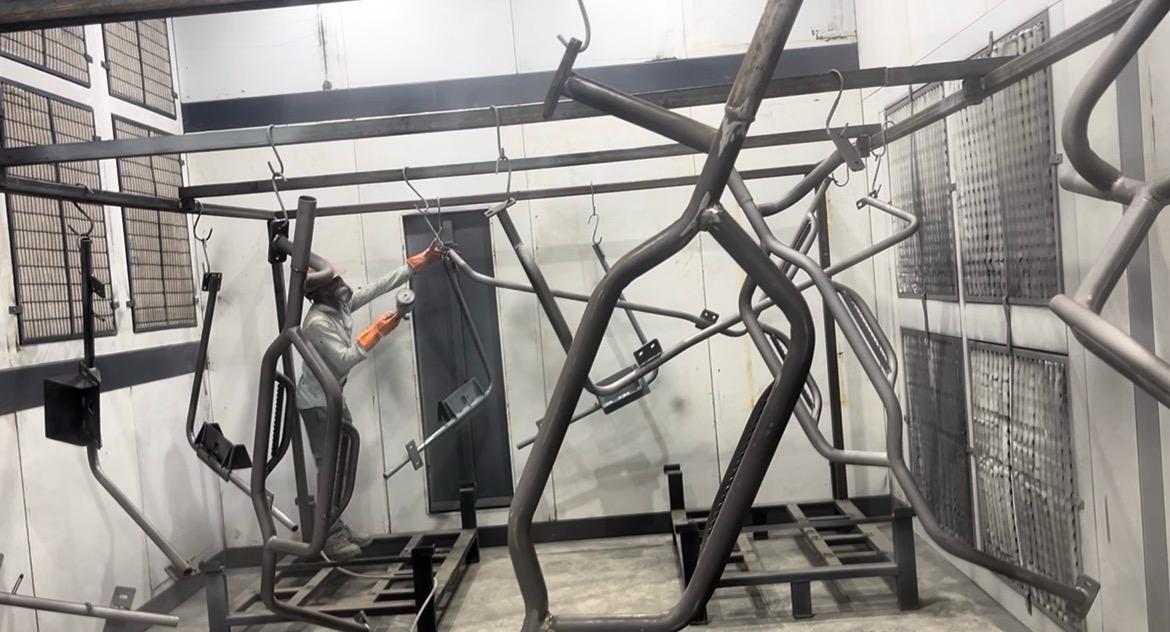

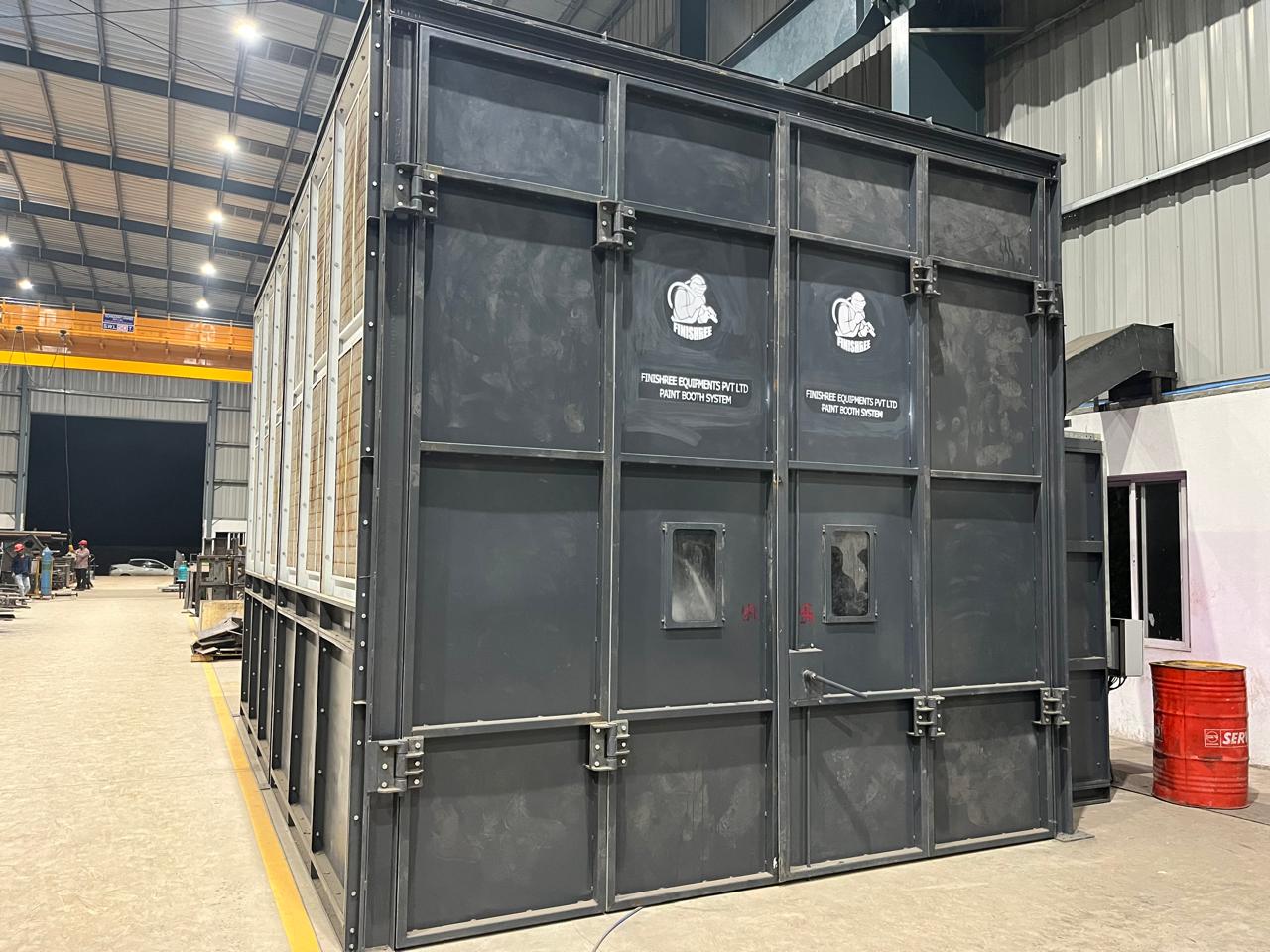

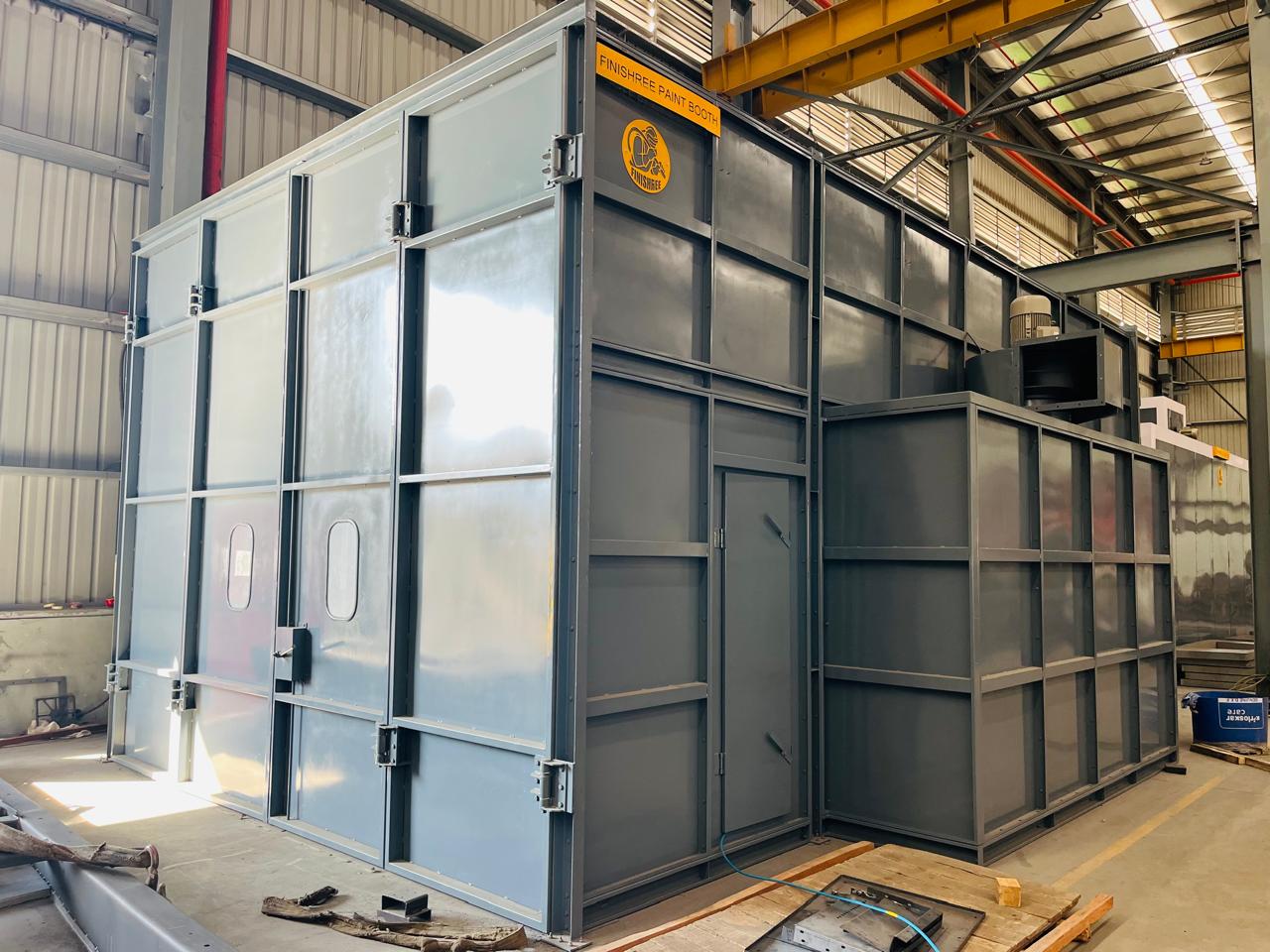

3. Cross Draft Type Paint Spray Booth
When the flow of air is horizontal through the air inlet filters mounted in the front doors and flows across the surface of the component
and exits through the exhaust filters then it is a cross draft booth.
When will you Use a Cross Draft Booth?
- For painting Trucks, Vans, Cars etc.
- What is the advantage and disadvantage of using this booth?
The advantage of using this booth is that no civil pit is required.
The disadvantage is the paint fumes will get deposited on the side walls, on the view glass and on the ground.

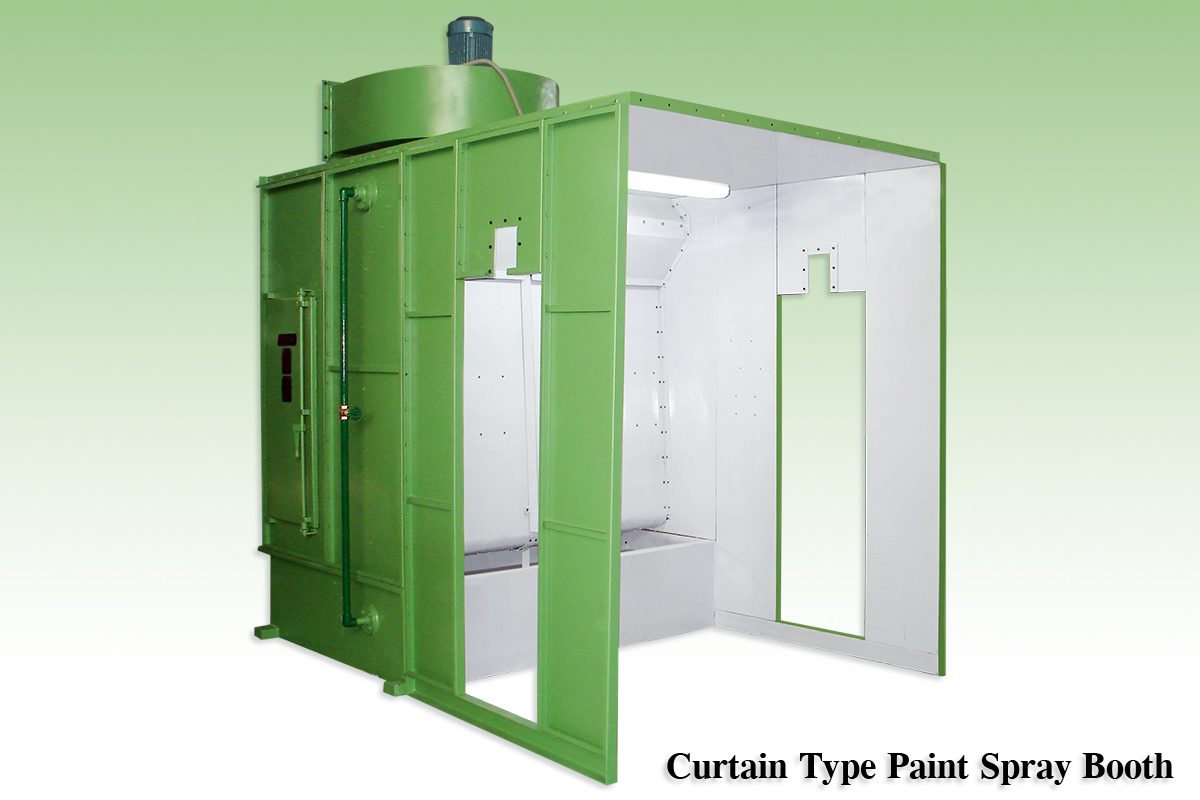

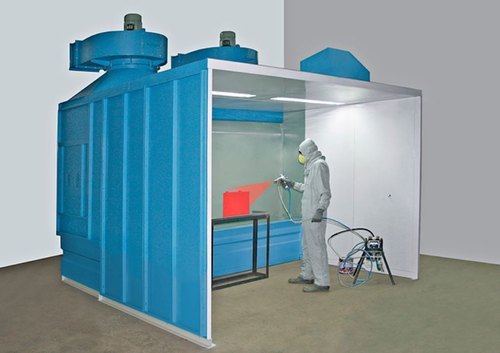

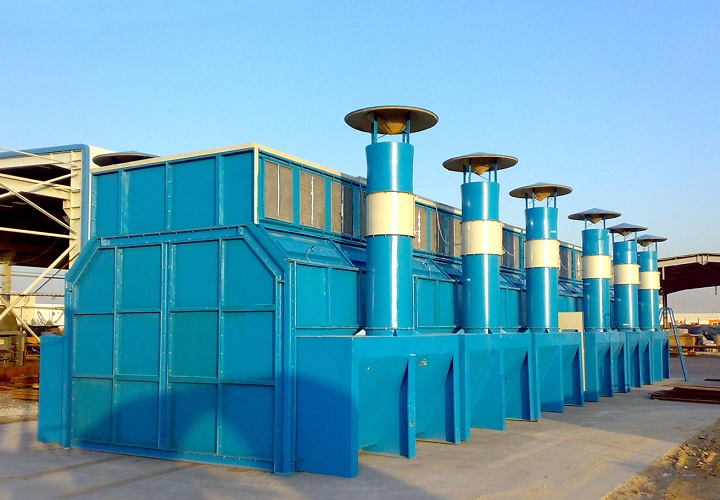

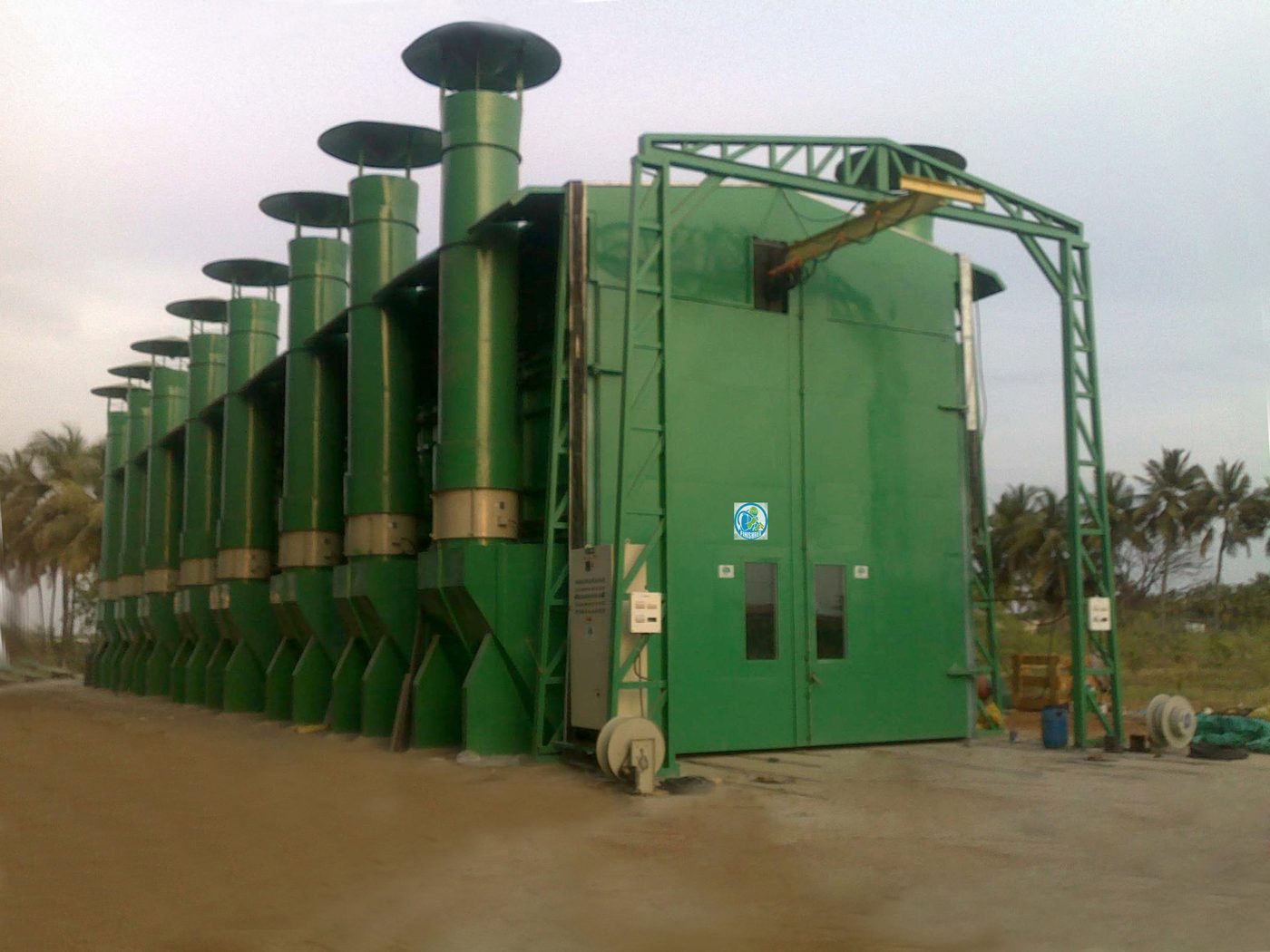

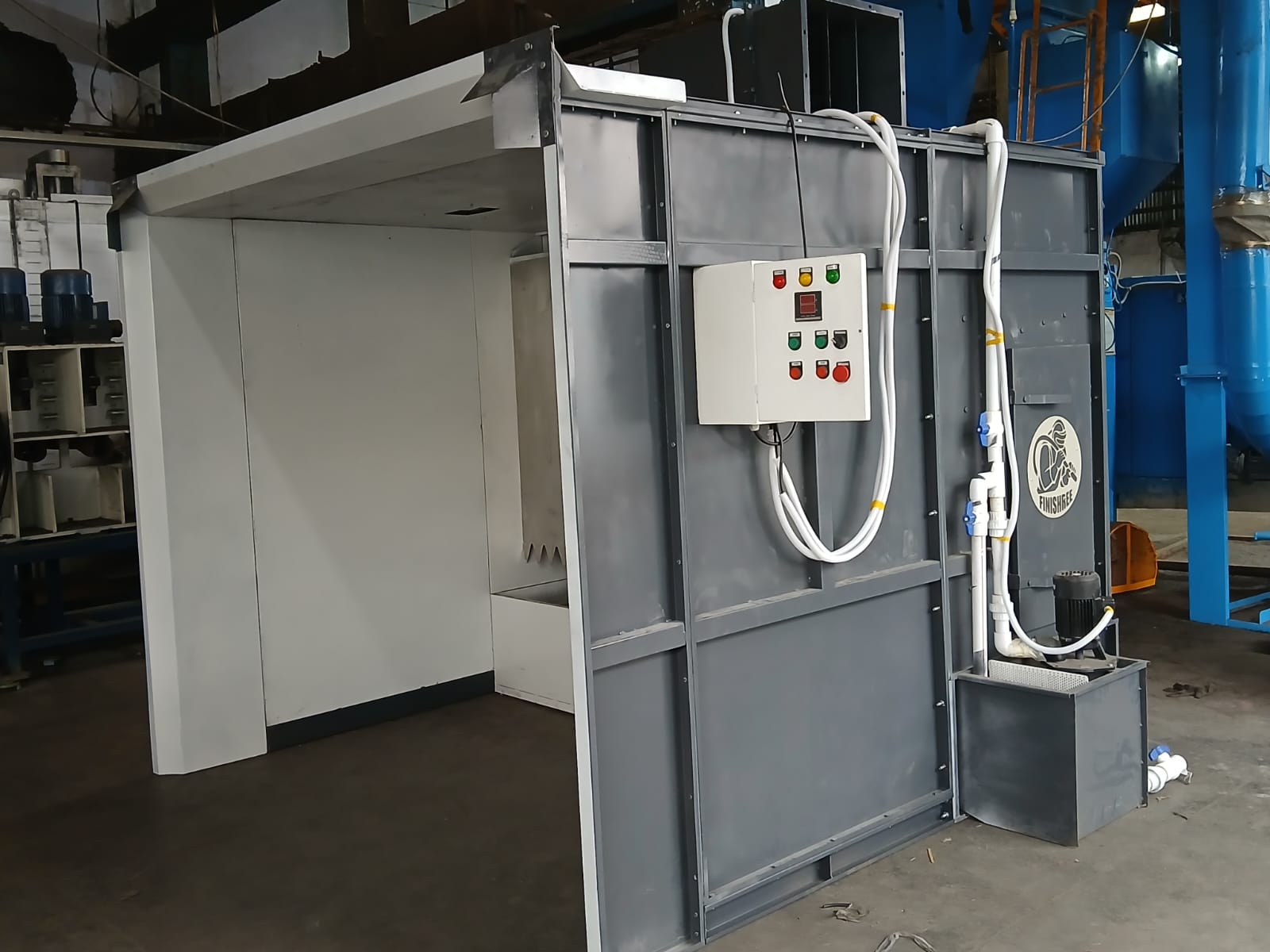

Water Curtain Type Paint Spray Booth
Paint Spray Booth with Water Curtain Type Wet Fume Collect is used for safe, healthy and quality spray painting. The health and explosion hazardous paint fume particles are sucked by the partial vacuum created by the exhaust fan through a curtain of water. Thus, air discharge into the atmosphere is clean and keep the working environment clean and friendly.
Paint Spray Booth is suitable for conventional airless & electrostatic painting, also paint spray booth provides better painting results.
Paint Trap Filter
Types of Filter & Description Paint Trap Filter
• Filtration Efficiency : 98.1%
• Holding Capacity : 18 Kg/Sq Mtrs 26 Kg/Sq Mtrs
• Max Pressure Drop : 0.52 In WC
• Air Velocity : 0.5 To 1 Mtrs/Sec.
• Media Make : Andrea (USA)
