Shot Blast Room Floor Design: Key to Efficient Abrasive Blasting Operations

A well-structured shot blast room floor design is crucial for optimizing the efficiency and safety of abrasive blasting processes. In industries such as automotive, aerospace, and heavy machinery, the right floor design can significantly impact productivity, waste management, and worker safety. This guide covers essential features and considerations for creating an effective shot blast room floor.
Understanding Shot Blast Room Floor Design
The shot blast room floor is specifically engineered to withstand the impact of abrasives and facilitate efficient recovery and recycling of spent materials. It plays a vital role in maintaining a clean, safe, and effective blasting environment.

Key Features of an Effective Shot Blast Room Floor Design:

1. Material Selection
Durable Flooring Options: The materials used for the shot blast room floor must withstand constant abrasion.
Common choices include:
Reinforced Concrete: Offers excellent durability and can be treated with surface hardeners to resist wear.
Steel Plates: Provides high strength and can be easily replaced if damaged.
Composite Materials: These are lightweight yet durable, ideal for reducing noise and vibration during blasting.
2. Abrasive Recovery System
Integrated Recovery Mechanism: A well-designed floor should facilitate the collection of spent abrasives for reuse.
Key components include:
Hoppers: Located at strategic points to collect used materials efficiently.
Conveyor Systems: Used to transport collected abrasives to storage or recycling areas.
Dust Control Systems: To minimize airborne particles, ensuring a clean work environment.
3. Floor Slope and Drainage
Optimal Slope Design: The floor should have a slight slope (1-2%) to direct spent abrasives and debris toward recovery points, preventing buildup and facilitating cleaning.
Effective Drainage Solutions: Include drainage systems that handle any spills or liquids, helping maintain a dry and safe workspace.
4. Safety Considerations
Non-Slip Surface: The flooring should have a textured, non-slip finish to prevent accidents, particularly in areas where water or dust may accumulate.
Impact Resistance: The floor design must absorb impacts from falling tools or heavy equipment, reducing the risk of injury.
5. Ease of Maintenance
Access for Cleaning: Design the floor to allow easy access for maintenance and cleaning equipment, ensuring that spent abrasives and dust can be quickly removed.
Durable Surface Coatings: Apply protective coatings that enhance durability and simplify cleaning, extending the life of the floor.
6. Noise Reduction Features
Acoustic Insulation: Incorporating materials that dampen sound can reduce noise levels in the blast room, contributing to a better working environment for operators.
Benefits of a Well-Designed Shot Blast Room Floor:
• Increased Efficiency: A functional floor design streamlines the blasting process, reducing downtime and increasing throughput.
• Cost Savings: An effective abrasive recovery system minimizes waste and reduces the need for purchasing new abrasives.
• Enhanced Safety: A thoughtfully designed floor mitigates risks, fostering a safer environment for workers.
• Long-Term Durability: Investing in high-quality materials and coatings ensures the floor can withstand years of rigorous use.

Types of Blast Room Floor Recovery Systems

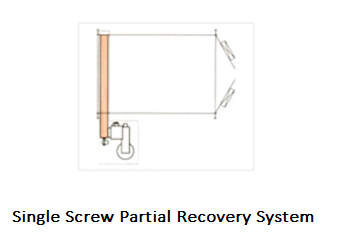

1. Single Screw Partial Recovery System
The Single Screw Partial Recovery System is the most cost-effective option, designed for facilities with low to medium production levels. Key features include:
• Metering shed plates
• Heavy-duty screw
• Belt and bucket elevator
• Air-wash separator
• Perforated rotary drum separator
• Oversized abrasive storage hopper with a caged man ladder and handrail
This system can be easily upgraded to "H", "U", or Full Floor recovery systems as production needs grow. It offers automatic reclaim capabilities while remaining an economical choice for smaller operations.

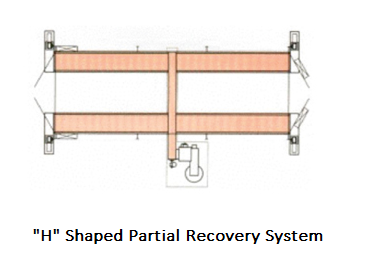

2. "H" Shaped Partial Recovery System
The "H" Shaped Partial Recovery System includes two longitudinal screw assemblies along each side wall of the blast room. This design allows the abrasive to fall into the screws, automatically reclaiming 60-90% of the blast media.
Ideal for medium to high production levels, this configuration is perfect for heavy-duty, flow-through operations, where large workpieces require continuous blasting.

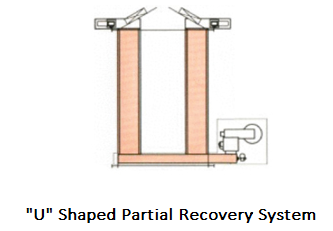

3. "U" Shaped Partial Recovery System
The "U" Shaped Partial Recovery System is similar to the "H" design but includes a cross screw along the back wall of the blast room, allowing for even more efficient media recovery. This system automatically reclaims around 60-90% of the blast media, while remaining abrasive is pushed into the screws at the end of the shift. It is ideal for medium to high production environments, especially for flow-through blast rooms where large workpieces are frequently processed.
4. Full Floor Recovery System
The Full Floor Recovery System is the most advanced and efficient option, recovering 100% of the abrasive media during the blasting process. This system uses multiple screw assemblies, eliminating the need for manual intervention in reclaiming media. Best suited for high-production facilities, this design ensures that all blast media is continuously returned to the separator system for reuse. It can be customized for any blast room configuration, making it the perfect solution for large-scale operations.
