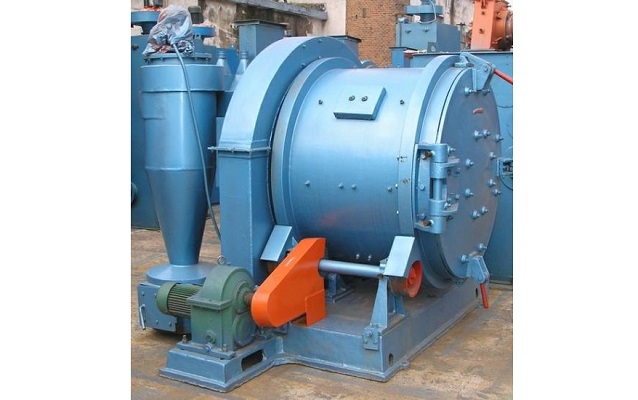

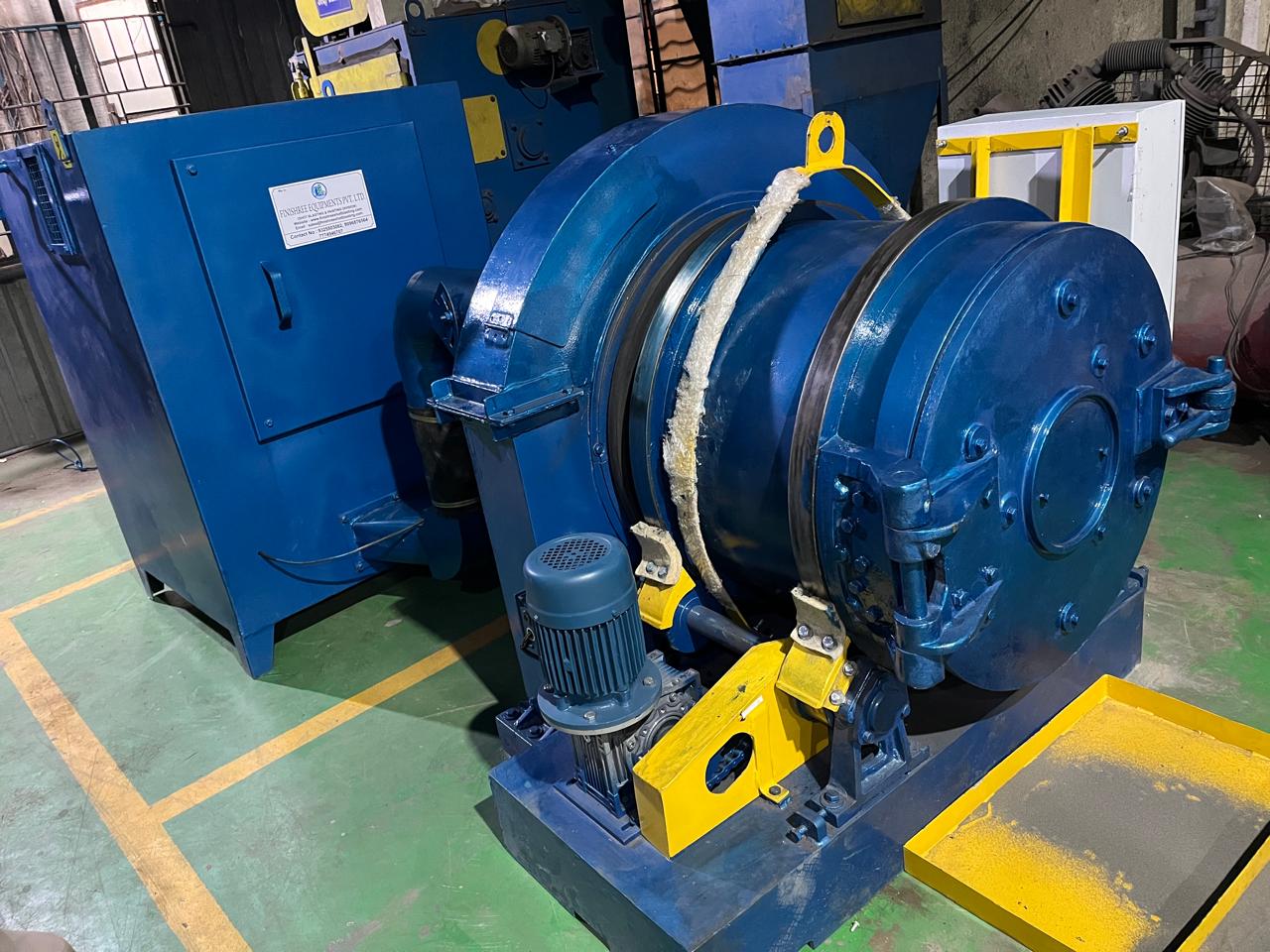

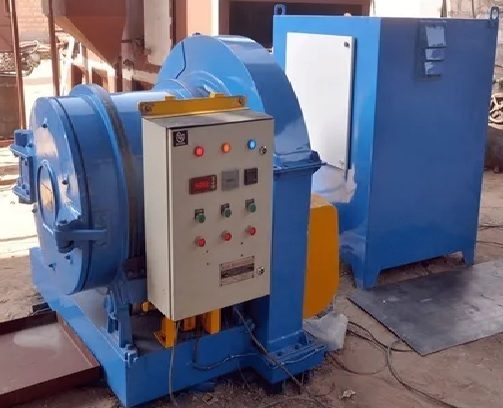

Rotary Barrel Shot Blasting Machine
Rotary barrel shot blasting machine designed for shot blast cleaning of small or
medium size iron, alloy ferrous castings, steel, forgings, heat-treated parts,
pressings, and fabrications at the lowest possible cost. The rugged and sturdy
overall construction of the machine ensures minimum maintenance cost and
operational, where vulnerable components are lined with wear-resistant
materials. The cleaning rate depends on the degree of surface preparation
required, the nature of the job, and the type of abrasive used. In rotary barrel
type shot blasting machine, Blast wheel most effective abrasive throwing unit
fitted capable of projecting optimum quantity of abrasive per horsepower. It is
capacity 100/150 kgs load 1.5/3 craft effective volume. The protection of
delicate casting is ensured because tumbling action of the barrel and slow speed
rotation of the barrel. Electronic time is used for a machine that can be
pre-set for the blasting cycle. All controls are centrally located on the
machine itself.
The Rotary Barrel Type Shot Blasting Machine is a specialized surface treatment
equipment used in various industries for efficient cleaning, finishing, and
surface preparation of workpieces. Here's an overview of this machine:
Operation:
Rotating Barrels: Utilizes rotating barrels or drums to propel abrasive
media onto the surface of the workpieces.
Abrasive Propulsion: Abrasives (like steel shots, grits, or beads) are
fed into the barrels, which, when rotated, throw the abrasives against the
workpiece's surface at high velocity.
Continuous Rotation: The barrels continuously rotate, ensuring a
consistent and even blasting of the workpiece.
Operating Method of Rotary Barrel Shot Blasting Machines :
The workpieces are in a standard drum, which will be put into a feeder or is
directly discharged. The feeder will be elevated and comes in front of the
machine door, which opens shortly. Arriving at the right ht, the feeder
swings & unloads the workpieces into the rotary drum. According to the
sensitivity of the work pieces, this method can be performed with attention.
The control of the drum can be performed manually or PLC. Through this, the
damage is withdrawn. At that time, the barrel is in the filling position.
Before the blasting process, the equipment door closes, and the barrel
swings into an optimal position in front of the high-performance turbine.
Simultaneously, it turns around its own axis.
The blasting process starts and lasts as long as the workpieces are mixed &
blasted from all sides. The inside of the blasting chamber is equipped with
materials that are very resistant against shots or grit. The initial wearing
in the direct shot blasting zone of the high-performance turbines is made of
high-resistant, replaceable steel plates. During the blasting process, the
door keeps closed and could only be opened after the chamber has become
dust-free. That takes around 10-15 sec. A scanty low-pressure exhausts the
dust during the blasting process. The dust will be divided into the proper
filter unit.
After the shot blasting machine method the barrel swings into the unloading
position. At this place, it is also possible to determine the quantity of
the workpieces and the intensity of unloading by using a dosed emptying. The
treated workpieces come on a screen moving trough which separates the
remaining abrasive and transports the pieces to prospective boxes.
Key Components:
Rotating Barrels: These barrels, typically made of wear-resistant materials,
contain the abrasive media and are crucial for the blasting process.
Abrasive Delivery System: The machine includes a system to feed the abrasive
media into the rotating barrels.
Dust Collection Unit: To capture and remove spent abrasives and debris,
ensuring a clean working environment and preventing
contamination.
Advantages:
Uniform Blasting: The rotational motion ensures a uniform and
consistent treatment of workpieces, resulting in an even surface
finish.
Versatility: Can handle a wide range of workpiece shapes, sizes, and
materials, making it suitable for various applications.
Efficiency: Offers high throughput rates, reducing manual labor and
increasing productivity.
Surface Quality: Provides an excellent surface finish, ideal for
subsequent coating, painting, or further processing.
Applications:
Automotive Industry: Used for cleaning and finishing automotive parts
like gears, shafts, and engine components.
Aerospace Industry: Prepares aerospace components for painting,
coating, or surface finishing.
Foundries and Manufacturing: Cleans and prepares metal castings,
forgings, and other fabricated parts.
Maintenance and Safety:
Regular Maintenance: Periodic checks and maintenance ensure optimal
performance and longevity of the machine.
Safety Measures: Adherence to safety protocols while operating the
equipment to prevent accidents and ensure a safe working
environment.
Conclusion:
The Rotary Barrel Type Shot Blasting Machine is a versatile and efficient
solution for achieving high-quality surface treatment across various
industries. Its ability to deliver consistent results and handle diverse
workpieces makes it a valuable asset in the manufacturing and finishing
processes.

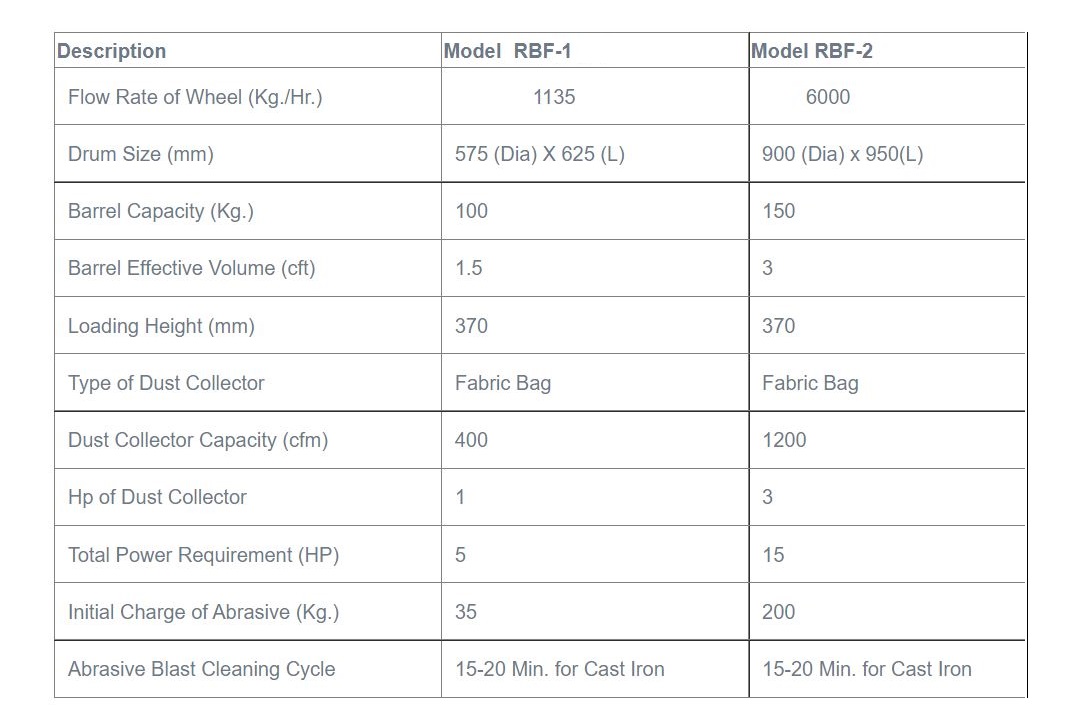

Following are the two standard models of Rotary Barrel Type Machine Specifications :
Dimension: Rotary shot blast machine with Dust
Collector
Length(mm) 2100 - 2800
Width(mm) 1700 - 2850
Height(mm) 2100 - 3200
Dimension of Dust Collector
Length(mm) 900 - 800
Width(mm) 700 - 1200
Height(mm) 2100 2400
Floor Space required for rotary shot blast machine with Dust
Collector
Length(mm) 3400 - 2600
Width(mm) 2500 - 3800
